High Pressure and Mud Pumps
(The specified values are maximum values and cannot be run together).
Container 22:
HPS OM502 ZF ES 4 HT400RH
Plunger pump: Halliburton HT400
Working pressure max.: 6250 PSI (430 bar)
Flow rate max.: 9,4 barrels (1500 L./min)
Plunger pump: Halliburton HT400
Working pressure max.: 6250 PSI (430 bar)
Flow rate max.: 9,4 barrels (1500 L./min)

Container 40:
HPS C15 A5 HT400LH
Plunger pump: Halliburton HT400
Working pressure max.: 6250 PSI (430 bar)
Flow rate max.: 9,4 barrels (1500 L./min)
Plunger pump: Halliburton HT400
Working pressure max.: 6250 PSI (430 bar)
Flow rate max.: 9,4 barrels (1500 L./min)
Container 80:
HPS 1692 6A QI1000
Plunger pump: MSI QI1000
Working pressure max.: 10000 PSI (700 bar)
Flow rate max.: 6,3 Barrel (1000 L./min)
Plunger pump: MSI QI1000
Working pressure max.: 10000 PSI (700 bar)
Flow rate max.: 6,3 Barrel (1000 L./min)

Container 88:
HPS C32A 9A 1250GD
Plunger pump: Gardner Denver 1250
Working pressure max.: 12575 PSI (857 bar)
Flow rate max.: 27 Barrel (4300 L./min)
Plunger pump: Gardner Denver 1250
Working pressure max.: 12575 PSI (857 bar)
Flow rate max.: 27 Barrel (4300 L./min)
Container 176:
HPS C15 A5 HDP120- 2MP60-70
Piston pump: Oruc MP60/70
Working pressure max.: 1595 PSI (110 bar)
Flow rate max.: 9,4 Barrel (1500 L./min)
Piston pump: Oruc MP60/70
Working pressure max.: 1595 PSI (110 bar)
Flow rate max.: 9,4 Barrel (1500 L./min)
Container 100:
HPS C18 6A QP1000
Plunger pump: MSI QP1000
Working pressure max.: 6250 PSI (430 bar)
Flow rate max.: 11,0 Barrel (1750 L./min)
Plunger pump: MSI QP1000
Working pressure max.: 6250 PSI (430 bar)
Flow rate max.: 11,0 Barrel (1750 L./min)

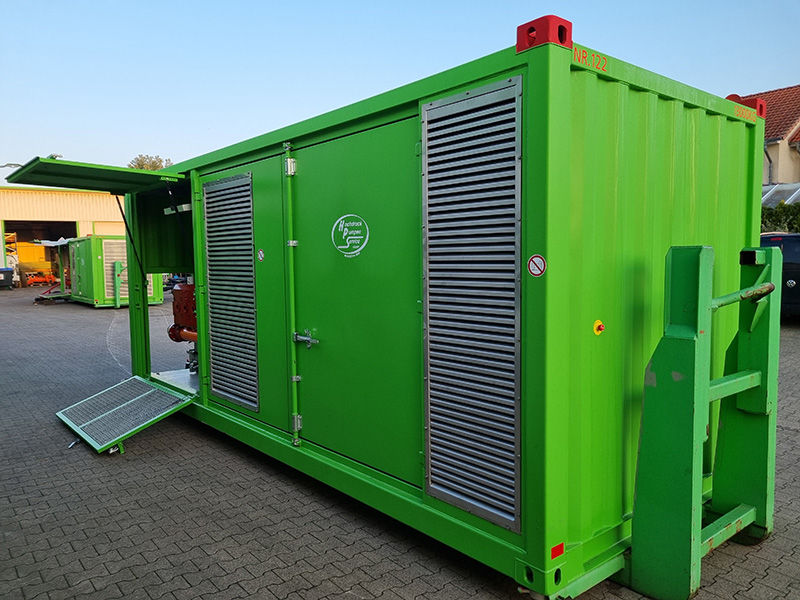

Container 122:
HPS C15 A6 TIH 600
Plunger pump: MSI TIH600
Working pressure max.: 1000 PSI (700 bar)
Flow rate max.: 3,5 Barrel (550 L./min)
Plunger pump: MSI TIH600
Working pressure max.: 1000 PSI (700 bar)
Flow rate max.: 3,5 Barrel (550 L./min)
Container 128:
HPS DDS60 A6 HT400
Plunger pump: Halliburton HT400
Working pressure max.: 6250 PSI (430 bar)
Flow rate max.: 9,4 Barrel (1500 L./min)
Plunger pump: Halliburton HT400
Working pressure max.: 6250 PSI (430 bar)
Flow rate max.: 9,4 Barrel (1500 L./min)
Container 144:
HPS C15 6A MP60/70
Piston pump: Oruc MP60/70
Working pressure max.: 1600 PSI (110bar)
Flow rate max.: 9,4 Barrel (1500 L./min)
Piston pump: Oruc MP60/70
Working pressure max.: 1600 PSI (110bar)
Flow rate max.: 9,4 Barrel (1500 L./min)
